Light Bee Display Meter
Light Bee Display Meter
Regular price
$99.99 USD
Regular price
$143.98 USD
Sale price
$99.99 USD
Unit price
/
per
Damaged your Display Meter?

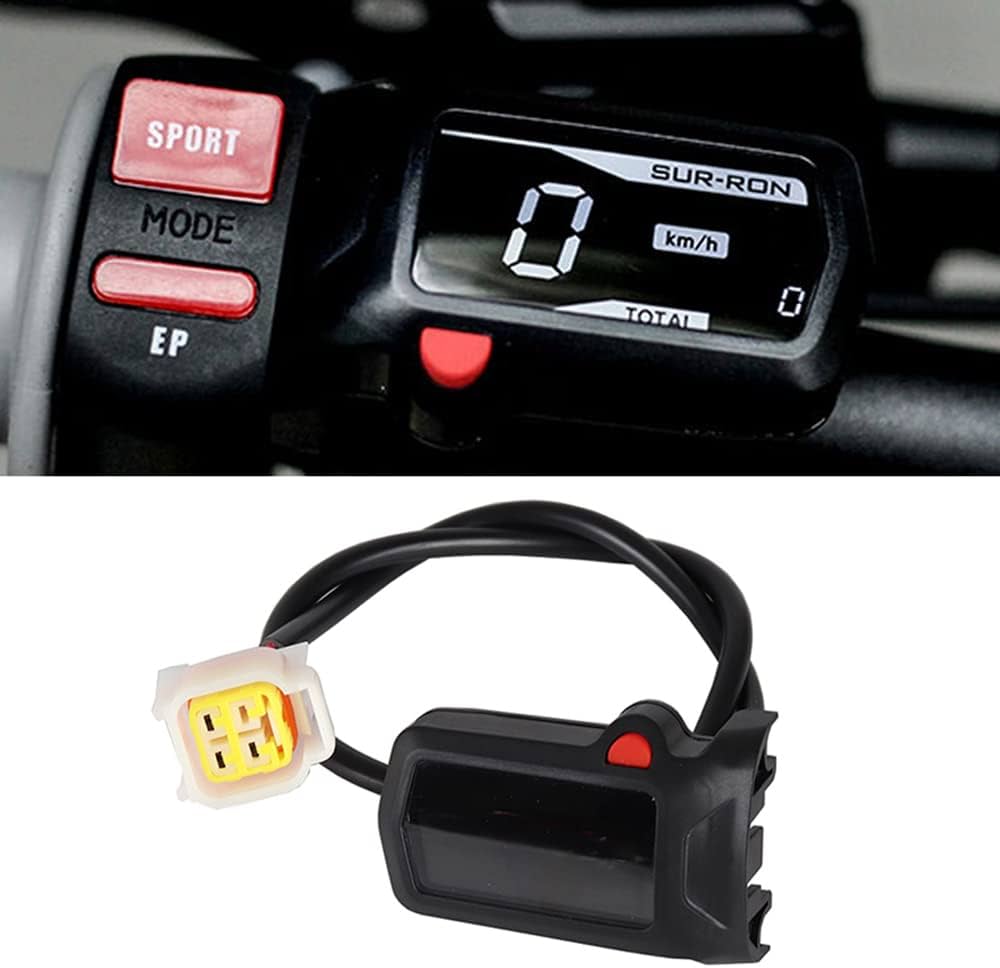

Don't worry, here's the solution! This Light Bee Display Meter is a stock replacement for the Light Bee X multi-function display meter. It comes with a plug-and-play cable, but mounting hardware is not included. Also included is the Sport/Eco Combination Switch Assembly.
Share
Couldn't load pickup availability
More Info on the 2024 Surron LBX below:
Key Features
Key Features
- 6,000W Peak Power: Delivers impressive performance.
- Top Speed: 75 km/h for exhilarating rides.
- 184 ft-lb (250 Nm) Peak Torque: Provides powerful acceleration.
- Range: 75 km at 40 km/h, ideal for extended adventures.
- Simple & Quick Charging: Connect to a standard wall outlet with the included charger. Charges to 100% in approximately 3 hours.
- Easy to Handle and Maneuver: Weighs just 56 kg (123 lb) with a low seat height of 32.6" (830 mm).
- Adjustable Off-Road Suspension: Tailored for a smooth ride on varied terrains.
- Regenerative Braking: Enhances efficiency and extends range.
- 45-Degree Climbing Angle: Tackles steep inclines with ease.
- Color Options: Available in black, blue, and silver, purple, with optional orange graphics included.
Specs
Specs
Motor
- Motor Type: PMSM
- Cooling Method: Air-Cooled
Controller
- Controller Type: X Version Sine Wave
- Power Modes: Eco and Sport
Motor Power System
- Rated Voltage: 60V (DC)
- Rated Power / Peak Power: 3,000W / 6,000W
Certificates
- Road Legal: No
Transmission
- Gear Ratio: 1:7.6
- Transmission: Primary Belt & 420 Drive Chain
Electrical Components
- Battery: 60V 40Ah Lithium Battery
- Battery Life: 500 Cycles (reduces thereafter)
- Battery Charge Indicator: Integrated LCD Display
- Charger: 10A
- Charging Time: 2.5-3.5 Hours
- USB Connection: Single USB-2.1 A Socket
- Speedometer: LCD Digital Speedometer
- Headlight & Rear Light: LED
Vehicle
- Chassis & Swingarm: Forged Aluminum
- Front Suspension: KKE Telescopic Fork, Adjustable for Preload & Rebound
- Rear Shock Absorber: KKE with TR Intersect Link-type Suspension, Adjustable for Compression & Rebound
- Wheel Type & Size: 19 x 1.4 Wire-Spoke Wheels Front/Rear, Alloy Hubs
- Tire Size: 70/100-19 Front/Rear
- Max Range: 75 km @ 40 km/h, depending on terrain
- Net Weight: 56 kg
- Max Recommended Load: 100 kg
- Max Climbing Angle: 45 degrees
- Rear Sprocket: 48T
- Vehicle Dimensions: 1,870mm x 780mm x 1,040mm
- Minimum Ground Clearance: 270mm
- Wheelbase: 1,260mm
- Seat Height: 830 mm
